Omu_IntRKsuite Class Reference
Solve ordinary differential equations using RKsuite. More...
#include <Omu_IntRKsuite.h>

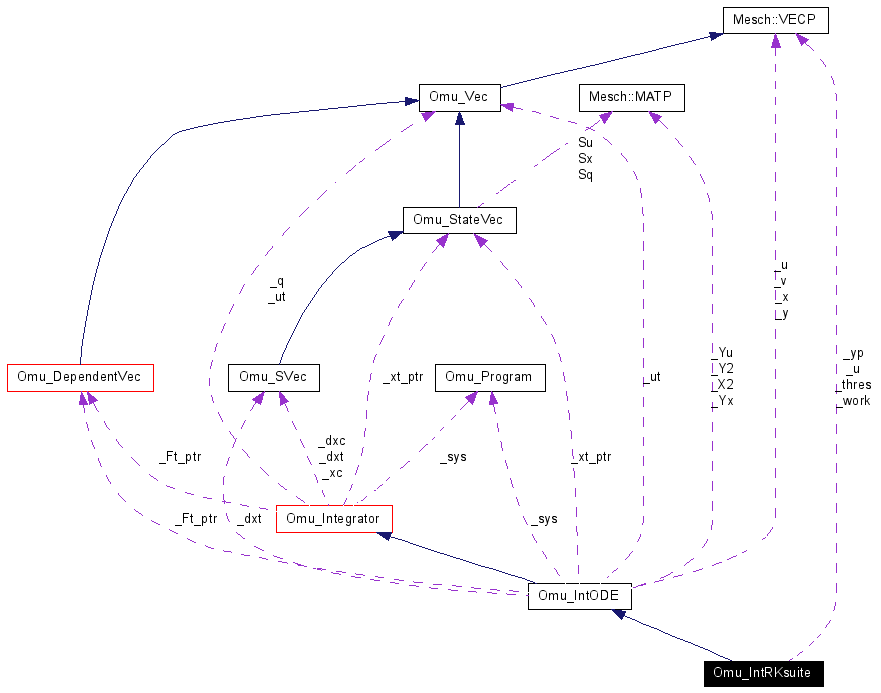

Inheritance diagram for Omu_IntRKsuite:
Public Member Functions | |
| Omu_IntRKsuite () | |
| constructor | |
| ~Omu_IntRKsuite () | |
| destructor | |
| void | F (double *T, double *Y, double *YP) |
| Callback routine for RKsuite for the calculation of system equations. More... | |
Implementation of predefined methods. | |
| |
| const char * | name () |
| Name of a specific integrator. More... | |
| void | ode_solve (double tstart, VECP y, const VECP u, double tend) |
| Interface to be implemented by derived ODE solvers. More... | |
 Public Member Functions inherited from Omu_IntODE | |
| Omu_IntODE () | |
| constructor | |
| ~Omu_IntODE () | |
| destructor | |
| void | syseq (double t, const VECP y, const VECP u, VECP f) |
| Callback routine for evaluating the model by derived ODE solvers. More... | |
| void | init (int k, const Omu_StateVec &xc, const Omu_Vec &q, const Omu_DependentVec &Fc, bool sa) |
| Initialize integrator, like adaptation of array dimensions and test of pre-conditions, like explicit ODE. More... | |
| void | solve (int kk, double tstart, double tend, const Omu_VariableVec &x, const Omu_VariableVec &u, Omu_Program *sys, Omu_DependentVec &Ft, Omu_StateVec &xt) |
| Solve differential equations over one sample period. More... | |
| Public Member Functions inherited from Omu_Integrator | |
| Omu_Integrator () | |
| constructor | |
| virtual | ~Omu_Integrator () |
| destructor | |
| virtual void | setup_stages (const Omu_Program *sys) |
| Setup stages for integrator. More... | |
| virtual void | setup_struct (int k, const Omu_VariableVec &x, const Omu_VariableVec &u, const Omu_DependentVec &Ft) |
| Setup struct for one stage k. More... | |
| virtual void | init_stage (int k, const Omu_VariableVec &x, const Omu_VariableVec &u, const Omu_DependentVec &Ft, bool sa=false) |
| Initialize solution of differential equations for stage k. More... | |
| virtual void | solve (int kk, double tstart, double tend, Omu_StateVec &xc, Omu_StateVec &dxc, Omu_Vec &q, Omu_DependentVec &Fc) |
| Solve differential equations over one sample period. More... | |
| virtual void | residual (int kk, double t, const Omu_StateVec &xc, const Omu_StateVec &dxc, const Omu_Vec &q, Omu_DependentVec &Fc) |
| Callback to evaluate residuals of continuous-time equations. More... | |
| int | K () const |
| get number of stages for which integrator has been set up | |
Protected Attributes | |
| int | _method |
| Specifies which Runge-Kutta method is to be used (default: 2). More... | |
| Protected Attributes inherited from Omu_Integrator | |
| Omu_Program * | _sys |
| Pointer to problem definition that is valid during solve. | |
| int | _K |
| number of stages for which integrator was set up | |
| int | _k |
| index of current stage | |
| int | _kk |
| index of current sample period | |
| int | _nxt |
| total number of DAE states | |
| int | _nd |
| number of discrete-time states | |
| int | _nv |
| number of expansion variables | |
| int | _na |
| number of algebraic states (no time derivative) | |
| int | _nx |
| number of states treated by optimizer (nx=nxt-nv) | |
| int | _nu |
| number of control parameters | |
| int | _nq |
| number of sensitivity parameters (nq=nx+nu) | |
| bool | _sa |
| Indicate if sensitivity analysis is required together with solution of differential equations. | |
| bool | _serr |
| Boolean to indicate if sensitivities should be considered for error tolerance (default: false). | |
| int | _n |
| Number of continuous-time states during integration (nxt-nd: total number minus discrete-time states). | |
| int | _m |
| Number of control parameters during integration (nd+nu: discrete-time states and actual control parameters). | |
| If_List | _ifList |
| container for interface elements | |
| double | _stepsize |
| Constant stepsize to be taken by integator. More... | |
| double | _min_stepsize |
| Minimal stepsize to be taken by integator. More... | |
| double | _rtol |
| Relative integration error tolerance (only for variable stepsize). | |
| double | _atol |
| Absolute integration error tolerance (only for variable stepsize). | |
| int | _res_evals |
| number of residual evaluations | |
| int | _sen_evals |
| number of sensitivity evaluations | |
| int | _jac_evals |
| number of Jacobian evaluations | |
Additional Inherited Members | |
| Protected Member Functions inherited from Omu_IntODE | |
| void | init_stage (int k, const Omu_States &x, const Omu_Vector &u, bool sa=false) |
| Initialize solution of differential equations for stage k. More... | |
| Protected Member Functions inherited from Omu_Integrator | |
| virtual void | solve (int kk, double tstart, double tend, const Omu_States &x, const Omu_Vector &u, Omu_Program *sys, VECP xt, MATP Sx=MNULL, MATP Su=MNULL) |
| Solve differential equations over sample period. More... | |
Detailed Description
Solve ordinary differential equations using RKsuite.
- See Also
- http://www.netlib.org
Member Function Documentation
| void Omu_IntRKsuite::F | ( | double * | T, |
| double * | Y, | ||
| double * | YP | ||
| ) |
Callback routine for RKsuite for the calculation of system equations.
|
inlinevirtual |
Name of a specific integrator.
Implements Omu_Integrator.
Interface to be implemented by derived ODE solvers.
y contains the initial solution and the result for values and sensitivities (dim(y)=_n=_nxt-_nd without sensitivities, dim(y)=_n*(1+_nxt-_nv+_nu) with sensitivities). u contains discrete-time states and control parameters (dim(u)=_m=_nd+_nu).
- See Also
- Omu_Integrator for more details about the dimensions.
Implements Omu_IntODE.
Member Data Documentation
|
protected |
Specifies which Runge-Kutta method is to be used (default: 2).
Possible choices are:
- 1: use the (2,3) Runge-Kutta pair
- 2: use the (4,5) Runge-Kutta pair
- 3: use the (7,8) Runge-Kutta pair
The documentation for this class was generated from the following file:
- Omu_IntRKsuite.h
